04563197
JUMO 89972 Widerstandsthermometer, 1xPt100 dl

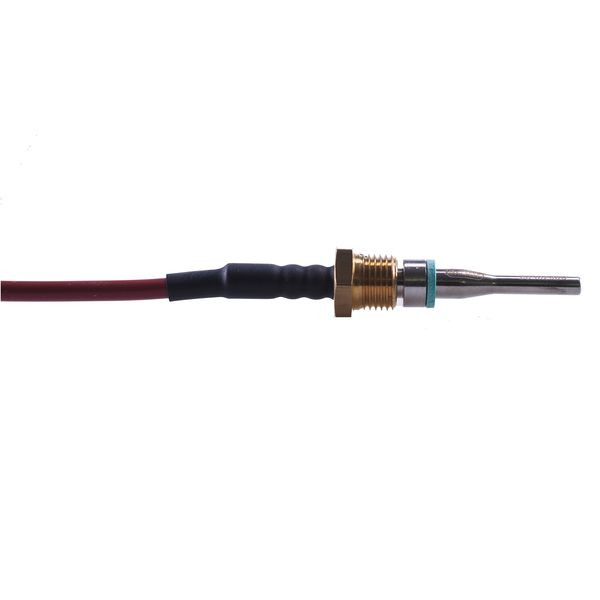

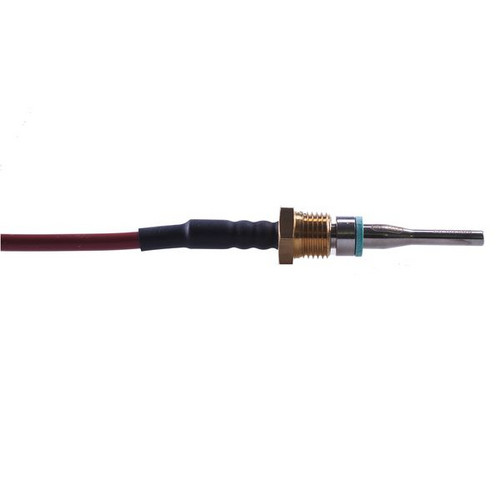

The screw-in resistance thermometer allows, due to the temperature dependence of the electrical resistance of its built-in platinum sensor, a temperature measurement in liquid and gaseous media. With a 2.5 m long silicone-insulated connecting cable and loose screw connection, the resistance thermometer is designed for temperatures from -50 to +200 °C. An important selection criterion is the reliable tightness for measurements both under negative and positive pressure. This screw-in type is therefore ideally suited for applications in air conditioning and refrigeration technology as well as in heating, furnace and apparatus engineering. The protection tube is made of Inconel 2.4816. The protection tube dimensions are 5.4 x 27.5 mm, with the tip offset to 3.3 mm. A thread with M10 x 1 mm serves as process connection. The resistance thermometer according to DIN EN 60751 (class B) is designed as 1 x Pt100 in three-wire circuit. An anti-kink hose is attached to the transition of the connecting cable. The permissible ambient temperature of the cable is -50 to +180 °C. The connection ends are provided with wire end sleeves.
