Abbildung ähnlich
JUMO

04563193
JUMO 89389 Konduktiver 2-Elektroden Leitfähig

89389 4053877005797 00089389
auf Anfrage
je 1 ST
keine Verfügbarkeitsinformationen

Verpackungseinheiten

1 ST Menge übernehmen

Funktionen

Verkaufsdaten

Mindestbestellmenge 1 ST
Bestellschritt 1 ST

Beschreibung

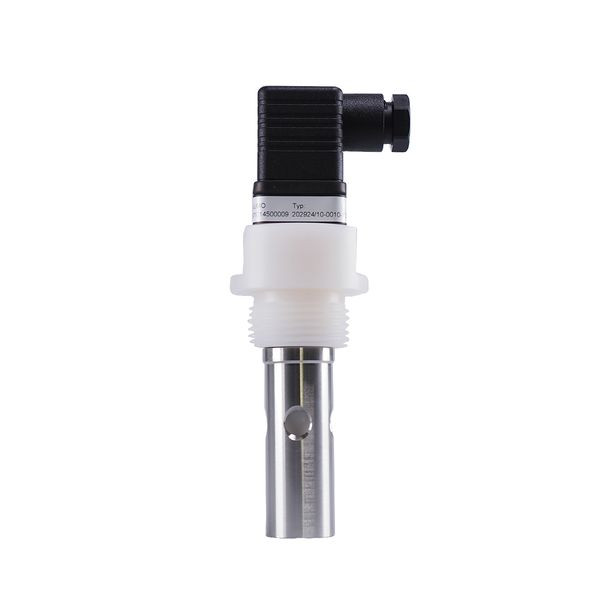

This conductivity sensor has a cell constant of K=0.01 (for measuring ranges 0.1 to 1000 uS/cm) and a Pt100 measuring insert in two-wire circuit. It is installed via the process connection G 1A made of PVDF. A device connector in angular form according to DIN 43650 is available as electrical connection. The material of the electrode is also stainless steel (1.4571). The insertion length is 78 mm. The operating temperature is 0 to +135 °C and the maximum compressive strength is 16 bar at 25 °C and also 9 bar at 60°C.

Merkmale

Verpackungseinheit 1
Gewicht 0,22
Gewichtseinheit KG
Gewichtbezugsmenge 1
Ausführung konduktiv
Max. Druck 16 bar
Max. Temperatur 135 °C
Ausführung des elektrischen Anschlusses sonstige
Winkelstecker ja
Ausführung des Prozessanschlusses G 1 Zoll
Zellenkonstante 0.1
Werkstoff der Elektrode Edelstahl 316 Ti (1.4571)
Sensortyp Pt100
Einstecklänge 78 mm
Werkstoff des Prozessanschlusses Polyvinylidenfluorid (PVDF)
Kurzbeschreibung Conductive 2-electrode conductivity sensor, 0.1..1000uS/cm, G 1A
eClass 11.0 - Klasse 27209090
UNSPSC 14.0801 - Klasse 41111900
