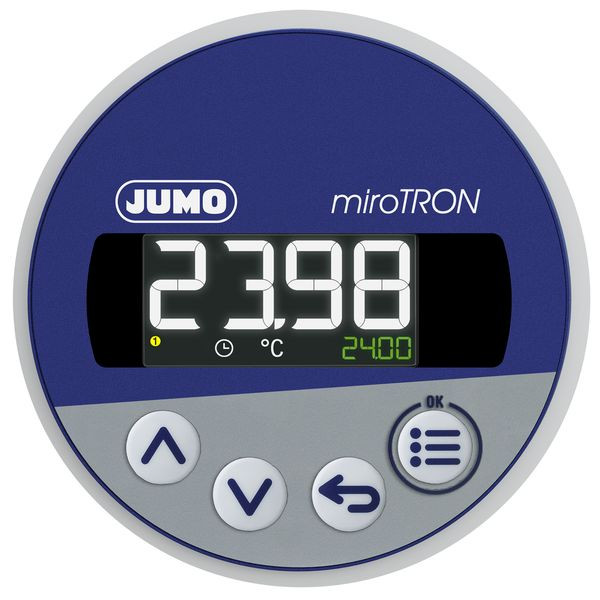

JUMO 771069 Thermostat Zweipunktregler AC230

The electronic thermostat can be used as a heating or cooling thermostat. It acquires the process variables via an RTD temperature probe. When used as a PID two-state controller, the controller structures P, I, PD, PI, and PID are possible. The device is equipped with a relay output (16 A) and a digital input.The round housing design allows the device to be used wherever round dial instruments were previously in use. The device is characterized by simple, clearly structured operation supported by texts in English, German, French, and Spanish. Process values, texts, and parameters are shown in two 18-segment LCD displays. Additional display elements inform about the switch position of the output, the timer status, and temperature unit. Pluggable terminal strips with PUSH IN technology enable fast electrical installation. Operation, parameterization, and configuration are carried out via a membrane keyboard with four keys. The setup program on a PC allows the device to be configured without any problems. No separate voltage supply is required when configuring via the USB interface (USB-powered).
