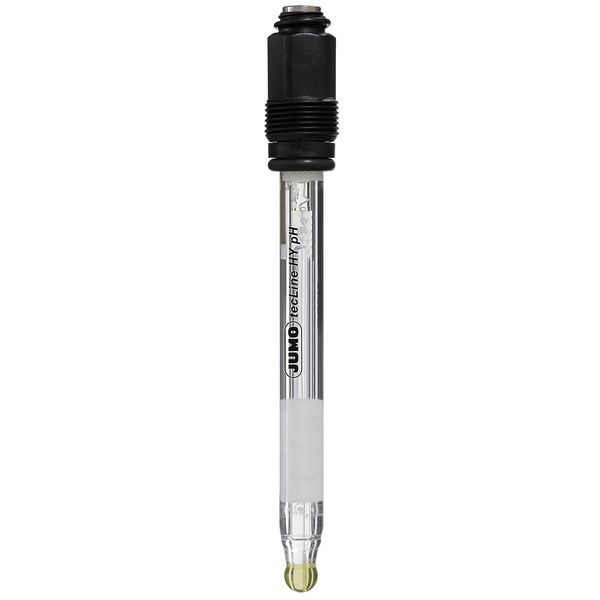

JUMO 659493 pH-Einstabmesskette, HT-Glas, Sch

This combined combination electrode (glass and reference electrodes in one shaft) has a zirconium dioxide diaphragm with an certified biocompatibility special hydro-gel according to EN ISO 10993-5. With the salt reserve integrated in the reference electrode, a longer service life can be achieved especially in media with lower conductive.Each electrode is individually tested and supplied with a calibration certificat. The electrode is manufactured using physiologically safe and FDA-listed materials. They feature lead-free shaft glass and therefore comply with the RoHS-2 directive. Only the selection of high quality materials and components ables the use, for example, in hygienic applications, sterilization and fermentation processes in the food and pharmaceutical industries as well as universal use in non-polluted and slightly polluted aqueous media and in drinking, salt and seawater applications. With a wide temperature range up to 135 °C and a wide pH range from pH0 to pH14, the electrode can be used in demanding applications up to 6 bar. The electrode has an integrated Pt1000 for recording the medium temperature. The insertion length is 120 mm.
