JUMO 65547 Widerstandsthermometer, 2,5m PTFE,

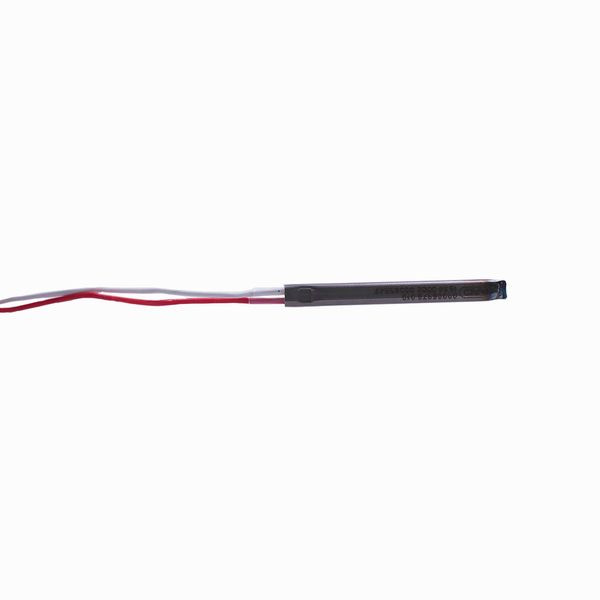

The contact resistance thermometer with connecting cable enables good temperature measurements on surfaces due to the temperature dependence of the electrical resistance of its built-in platinum sensor and the special stainless steel protection fitting. The protection tube made of material 1.4571 has a rectangular dimension of 4 x 2 mm. The contact resistance thermometer is therefore preferably used for temperature measurements on closed pipe systems or on other round and flat surfaces. The resistance thermometer according to DIN EN 60751 (Class B) is designed as 1 x Pt100 in 2-wire circuit and is designed for temperatures from -50 to +260 °C. Due to the simple assembly with tension bands or hose clips, mechanical processing of the measuring point is not necessary. The permissible ambient temperature of the 2.5 m long PTFE connecting cable is -50 to +260 °C. The open connection end is equipped with wire end ferrules according to DIN 46228 part 4.
