04563151
JUMO 65531 Widerstandsthermometer, 2,5m Silik

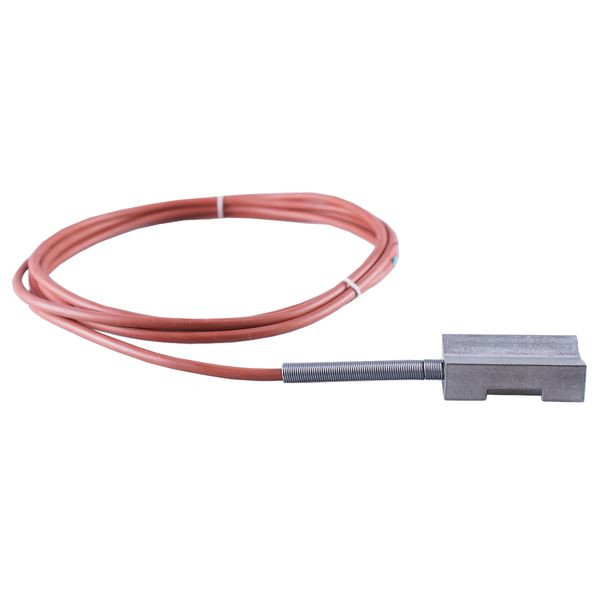

The contact resistance thermometer with connecting cable enables good temperature measurements on surfaces due to the temperature dependence of the electrical resistance of its built-in platinum sensor and the special protection fitting made of aluminium. A 150° angle is milled out in the middle of the bottom side of the protection fitting, which enables a mounting even on round surfaces. The contact resistance thermometer is therefore preferably used for temperature measurements on closed pipe systems or on other round and flat surfaces. The resistance thermometer according to DIN EN 60751 (Class B) is designed as 1 x Pt100 in 2-wire circuit and is designed for temperatures from -50 to +180 °C. The dimensions of the protection fitting are 25 x 15 x 50 mm. The transition from the protective fitting to the connecting cable is equipped with an anti-kink spring. Due to the simple assembly with tensioning straps or hose ties, mechanical processing of the measuring point is not necessary. The permissible ambient temperature of the 2.5 m long silicone connecting cable is -50 to +180 °C. The open connection end is equipped with wire end sleeves according to DIN 46228 part 4.
