04563149

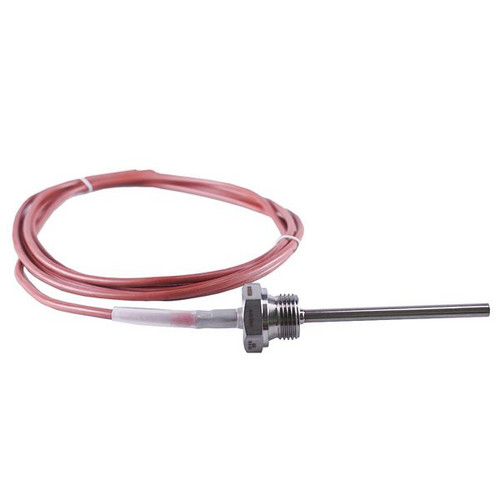

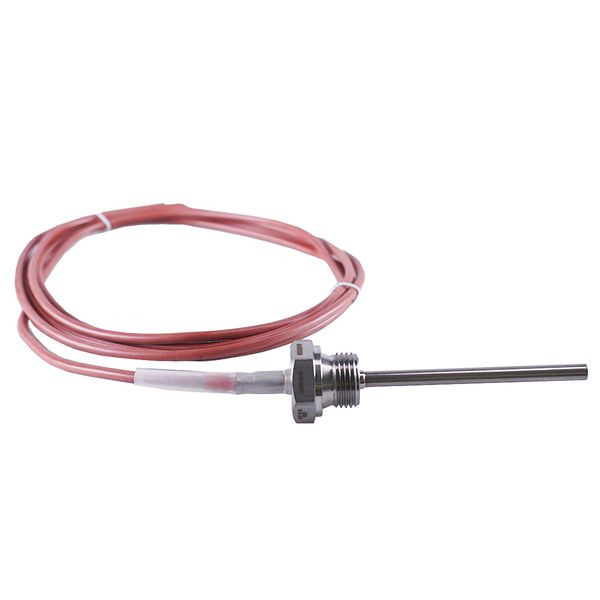

JUMO 65232 Widerstandsthermometer, 1xPt100 dl

The screw-in resistance thermometer allows, due to the temperature dependence of the electrical resistance of its built-in platinum sensor, a temperature measurement in liquid and gaseous media. With a 2.5 m long silicone-insulated connecting cable and fixed screw connection with G 1/2 inch thread, the resistance thermometer is designed for temperatures from -50 to +200 °C. An important selection criterion is the reliable tightness for measurements both under negative and positive pressure. This screw-in type is therefore ideally suited for applications in air conditioning and refrigeration technology as well as in heating, furnace and apparatus engineering. The continuous protection tube and the process connection are made of stainless steel 1.4571 and protect the measuring insert against chemical influences and mechanical damage. The resistance thermometer according to DIN EN 60751 (class B) is designed as 1 x Pt100 in three-wire circuit. The dimension of the protection tube is 6.0 x 100 mm. An anti-kink hose is attached to the transition of the connecting cable. The permissible ambient temperature of the silicone cable is -50 to +180 °C. The connection ends are provided with wire end sleeves.
