04563809
JUMO 60001141 Temperaturregler mit Umschaltko

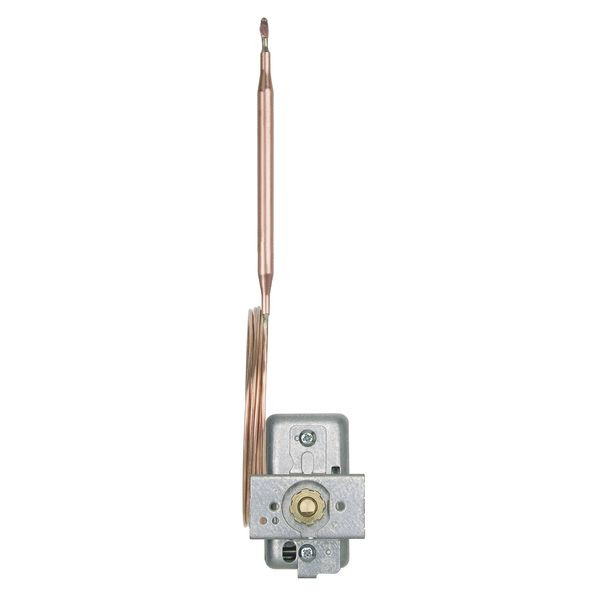

The 1-pole mechanical panel-mounting thermostat is very robust due to its zinc-plated sheet steel case and can also be used in rough conditions. It operates according to the fluid expansion principle and can be used up to a maximum permissible probe temperature of 230 °C without any problems. The smooth round sensor made of copper has a diameter of 6 mm with a probe length of approx. 113 mm. The capillary of the thermostat is also made of copper and can be laid flexibly with a bending radius of 5 mm. The maximum permissible ambient temperature at the switch head (protection class IP00) is 80 °C, which is fixed using a fixing bracket with two M3 x 22 screws.The desired shut-off temperature can be easily set on a scale with the aid of a setpoint adjuster, which is available as an extra. The temperature controller is characterized by a high switching point accuracy of +/- 1.5 % in the upper third of the scale. A decisive advantage is that no additional auxiliary energy is necessary for temperature measurement. The electrical connection is made at the tab connectors (A 6.3 x 0.8 DIN 46244) of the switching unit, which can directly switch a maximum permissible switching capacity of AC 230 V/16. The thermostat has a switching differential (hysteresis) of 2.5% of the scale range and automatically switches back to the original state when the temperature falls below the switch-off temperature by this value. The temperature controller is very flexible and is used in heating, air conditioning and ventilation technology as well as in the plastics industry, apparatus and furnace construction and for temperature monitoring in laboratories and climatic chambers. The device is approved according to DIN EN 14597 and has UL and EAC approval.
