JUMO 60000182 Temperaturwächter mit Umschaltk

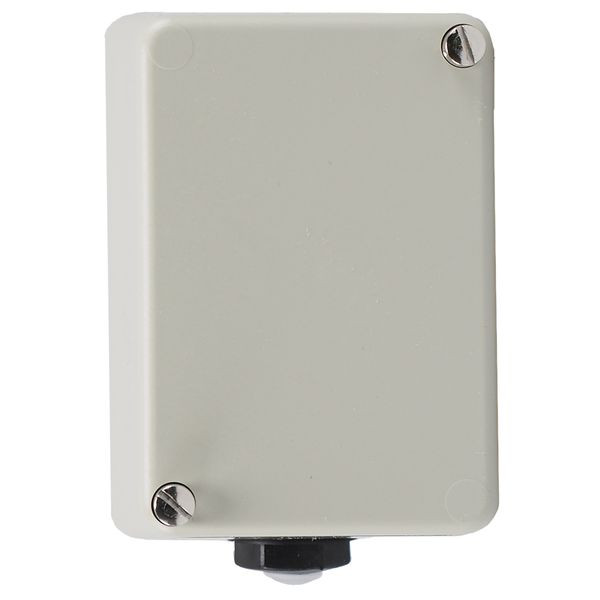

Due to its shock-resistant case with high-quality plastic cover and aluminum die-cast lower part, the 1-pole mechanical surface-mounting thermostat is very robust and can also be used in rough conditions. The measuring system used operates on the fluid expansion principle and can be used without any problems up to a maximum permissible probe temperature of 175°C. The protection tube made of nickel-plated brass has a diameter of 8 mm and is fixed with a thread G 1/2 form A according to DIN 3852/2. The maximum permissible ambient temperature at the switch head (protection class IP54) is 80 °C and with the aid of a screwdriver, the desired switch-off temperature can be easily set on a scale after removing the case lid inside. The temperature monitor is characterized by a high switching point accuracy of +/-1.5 % in the upper third of scale. A decisive advantage is that no additional auxiliary energy is necessary for temperature measurement. The electrical connection is made directly to the installed microswitch via screw terminals, which can directly switch a maximum permissible switching capacity of AC 230 V / 10 A. The thermostat has a switching differential (hysteresis) of approx. 3 to 4 % of the scale range and automatically switches back to the original state after the temperature has fallen below the switch-off temperature by this value. The temperature monitor can be used very flexibly and is used in heating, air conditioning and ventilation technology as well as in the plastics industry, in apparatus and mechanical engineering and in furnace construction, in district heating transfer stations and for temperature monitoring in laboratories and climatic chambers.The device is approved according to DIN EN 14597 and has also an EAC approval.
