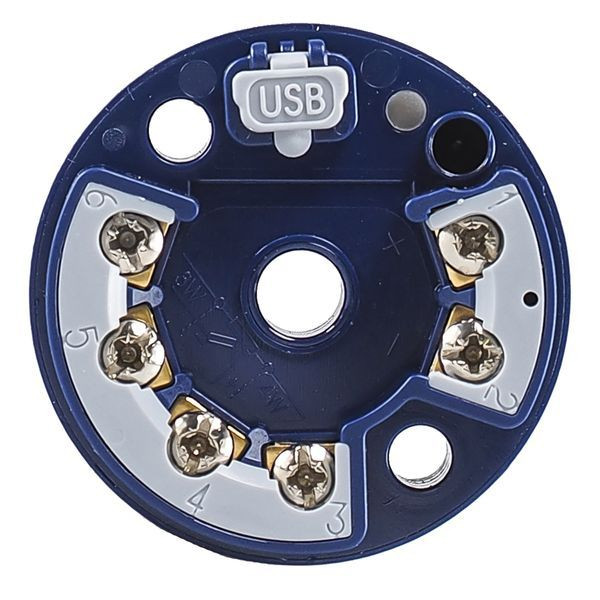

Abbildung ähnlich
JUMO

04563636
JUMO 582219 Zweidraht-Messumformer, Anschluss

582219 4053877000716 00582219
auf Anfrage
je 1 ST
keine Verfügbarkeitsinformationen

Verpackungseinheiten

1 ST Menge übernehmen

Funktionen

Verkaufsdaten

Mindestbestellmenge 1 ST
Bestellschritt 1 ST

Beschreibung

The transmitter aquire sensor signals from RTD temperature probe, thermocouples, resistance transmitter or resistance/potentiometer. When using a resistance/potentiometer or RTD temperature probe, the sensor connection on the input side can be made in two-, three- or four-wire circuit. Voltage signals in the range of -100 to +1100 mV can also be recorded. Depending on the selection of the measuring input, the linearization varients linear, temperature linear and the possibility of a comfortably configurable customer-specific linearization are available. The output signal of the transmitter is 4 to 20 mA. The measuring input and the output signal are galvanically isolated from each other. Reversion of the output signal is possible for both types. The configuration of the transmitter to probe type, probe connection technology, measuring range (freely adjustable) and linearization is carried out with a setup program on the PC. The connection to the PC is established by a USB interface, which requires no additional auxiliary voltage. With the USB interface the min/max process value recorded by the transmitter, the min/max operating temperature can be read out and the sensor wiring can be checked online. The operating status of the transmitter is signaled by a two-color control LED (red/green). In a faulty-free operation it lights up green. If a malfunction occurs, such as a probe break, this is shown by a blink code.

Merkmale

Breite 44 mm
Verpackungseinheit 1
Gewicht 0,04
Gewichtseinheit KG
Gewichtbezugsmenge 1
Höhe 21 mm
Tiefe 44 mm
Anzahl der Messkreise 1
Ausführung des elektrischen Anschlusses Schraubanschluss
Temperaturmessbereich 0 - 100 °C
Widerstandsmessbereich 0 - 3000 Ohm
Spannungsart der Versorgungsspannung DC
Versorgungsspannung bei DC 11 - 35 V
Kurzbeschreibung Two-wire transmitter, terminal head form B, screw terminal, 0 to 100°C, Pt 100dl
eClass 11.0 - Klasse 27371810
UNSPSC 14.0801 - Klasse 39122300
