04563599

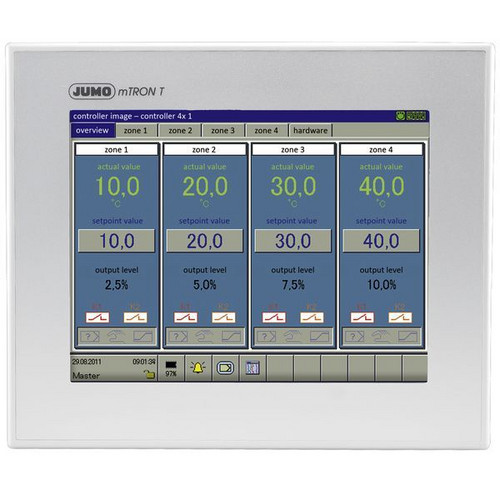

JUMO 569495 Multifunktionspanel (HMI)

The multifunction panel (component of the complete mTRON T system) has the connection options: 1 x ethernet (RJ45), 1 x system bus in (RJ45), 1 x system bus out (RJ45) and 2 x USB host. The panel is made for a voltage supply of DC 24 V +25/-20 %. The TFT-touchscreen is used for easier and clearer measurment data visualization, operation, configuration and parameterization of the system. The TFT color screen has a diagonal screen size of 21,3 cm (8,4''), a resolution of 640 x 480 pixels, 256 colors and LED backlighting. As a man-machine interface, the panel provides an optimal and orderly into the process states and the parameters of the system. It enables the display and operation of controller screen, process screen of the program editor and the optional recording function. Setpoints, batch texts, parameters and configuration data can be entered and changed by the user directly on the screen. The process data transmitted by the system bus is displayed in real time. It is possible to archive and evaluate data with proven PC programs. In addition to the standard interfaces (LAN, USB), two serial interfaces are optionally available, a barcode scanner, modem or other Modbus devices (master, slave) can be connected. A optional setup program allows the user to conventiently configure at the multifunction panel.
