04563596

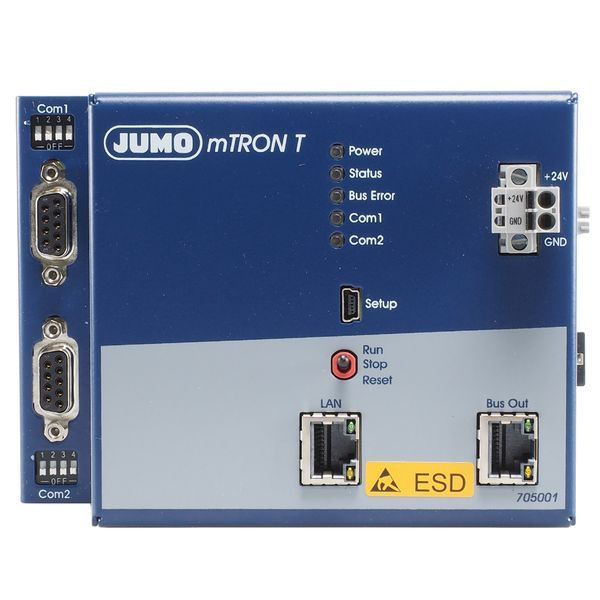

JUMO 569490 Zentraleinheit (CPU)

The central processing unit includes the process screen of the application and manages the configuration data and the parameter data of the overall system mTRON T (with the exception of the multifunction panel). A total of 64 limit values can be monitored. The presence of the voltage supply, disruptions in the system and communucation by the interfaces are signaled by LEDs. A USB device intrface (setup), a LAN connection (ethernet) and two system bus connections are available as standart. The central processing unit is connected by the side and the input and output moduls are attached by a router. They can be conveniently configured and parameterized with the optional setup program. The voltage supply is DC 24 V +25/-20 %.
