04563591

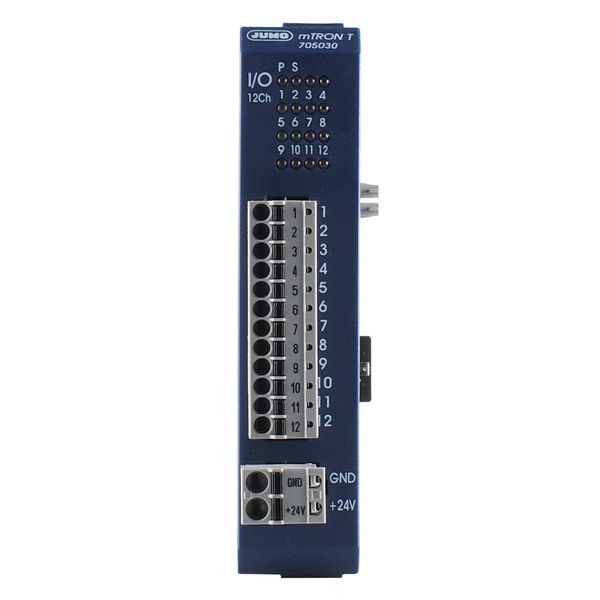

JUMO 566252 Digital-Ein-/Ausgangsmodul 12-Kan

The 12-channel digital input/output module (component of the overall mTRON T system) for DIN rail mounting has a voltage supply range DC 24 V +25/-20 %. The module has twelve channels, which can be configured eiher as digital inputs or digital outputs. The digitized input states are available in the system for further processing. The digital outputs are controlled by the system bus by digital signals (assignment by the connection list or directly from the PLC). The load current of up to 6 A (12 x max. 500 mA) is to be provided by the front terminas +24 V/GND. The concern of the power supply, the operating states of the module and the logical states of the digital inputs and digital outputs are shown by LEDs. An optimal setup program allows the user to conveniently configure the digital input and output module. The module insert can be easily pulled forward out of the housing when servicing. The housing including the backplane remains mounted on the DIN rail.
