JUMO

04563590

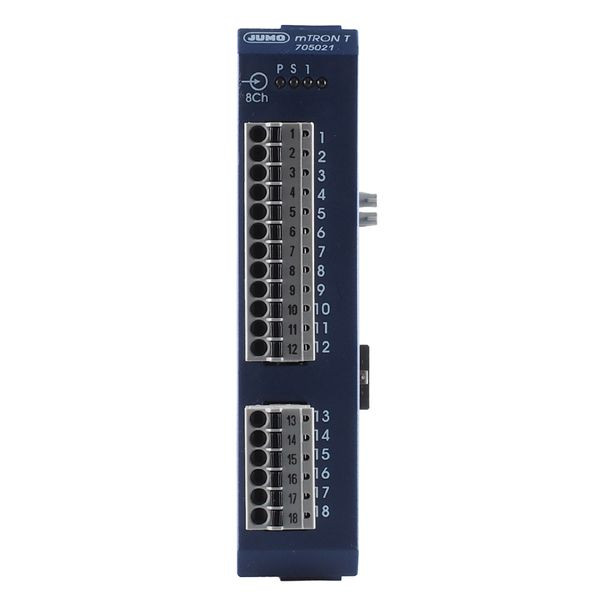

JUMO 566251 8-Kanal-Analogeingangsmodul

566251 4053877000310 00566251
auf Anfrage
je 1 ST
keine Verfügbarkeitsinformationen

Verpackungseinheiten

1 ST Menge übernehmen

Funktionen

Verkaufsdaten

Mindestbestellmenge 1 ST
Bestellschritt 1 ST

Beschreibung

The 8-channel analog input module has eight analog inputs for RTD temperature probe in two-wire circuit and a digital input (DC 0/24 V). The analog inputs have no galvanic isolation from each other. The digitized input values/states are available in the system for further processing. The concern of the power supply, the operating states of the module and the logical states of the digital input are shown by LEDs. An optimal setup program allows the user to conveniently configure the analog input module. The module insert can be easily pulled forward out of the housing when servicing. The housing including the backplane remains mounted on the DIN rail. The voltage supply is DC 24 V +25/-20 %.

Merkmale

Breite 23 mm
Verpackungseinheit 1
Gewicht 0,25
Gewichtseinheit KG
Gewichtbezugsmenge 1
Höhe 104 mm
Tiefe 116 mm
Anzahl der Messkreise 9
Ausführung des elektrischen Anschlusses Schraubanschluss
Spannungsart der Versorgungsspannung DC
Versorgungsspannung bei DC 19 - 30 V
Kurzbeschreibung 8-channel analog input module
eClass 11.0 - Klasse 27371810
UNSPSC 14.0801 - Klasse 39122300
