04563132
JUMO 55929 Widerstandsthermometer, DIN EN 145

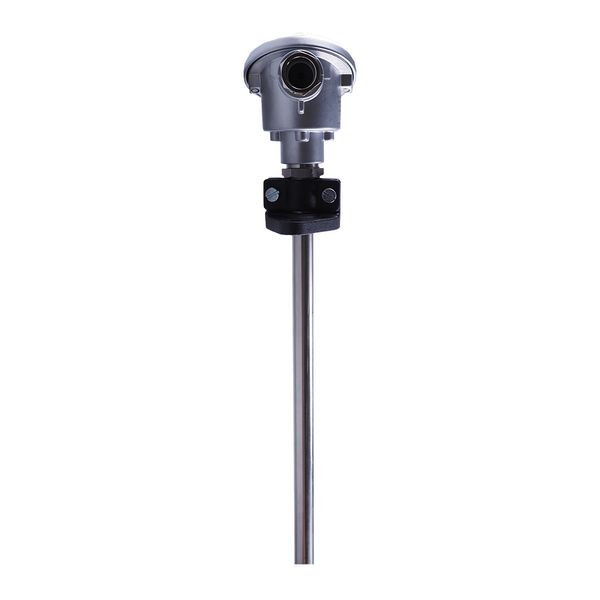

Push-in resistance thermometers for DIN EN 14597 tested devices and systems. The thermometer with movable stop flange and connection head Form B (M24 x 1.5) may be used in conjunction with temperature control and limitation devices tested to DIN EN 14597 (DIN 3440) in heat transfer systems in accordance with DIN 4754. The double thermometer 2x P100 in two-wire circuit according to DIN EN 60751 is designed for temperatures from -170 to +700 °C. The connection head form B is made of die-cast aluminium and withstands ambient temperatures up to 100 °C. The protection tube with the dimensions 15 x 500 mm is made of stainless steel X 6 CrNiMoTi 17 12 2 The installation length is defined with a range of 50 to 460 mm. This resistance thermometer is designed for temperature measurements in gaseous media (air). Fields of application are, among others, in air conditioning and refrigeration technology as well as in heating, furnace and apparatus engineering.
