04563115
JUMO 55732 Widerstandsthermometer, 1xPt100 dl

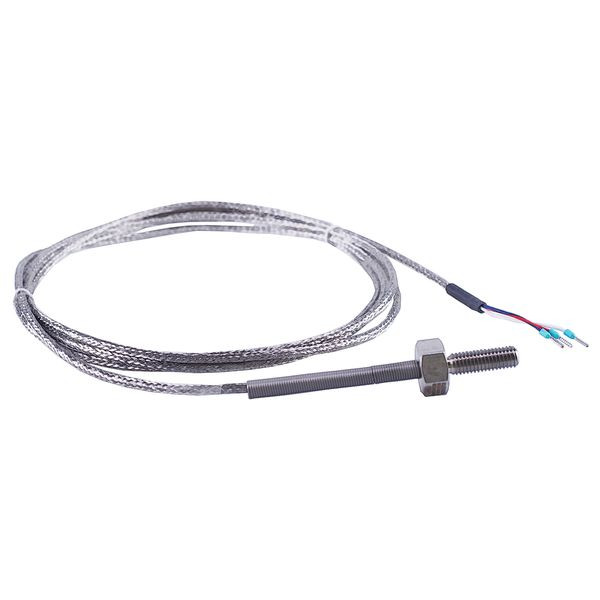

The screw-in resistance thermometer allows, due to the temperature dependence of the electrical resistance of its built-in platinum sensor, a temperature measurement in liquid and gaseous media. With a 2.5 m long connection cable made of metal braiding and threaded protection tube, the resistance thermometer is designed for temperatures from -50 to +300 °C. An important selection criterion is the reliable tightness for measurements both under negative and positive pressure. This screw-in type is therefore ideally suited for applications in air conditioning and refrigeration technology as well as in heating, furnace and apparatus engineering. The threaded protection tube with the dimension M8 x 25 mm is made of stainless steel 1.4571 and protects the measuring insert against chemical influences and mechanical damage. The resistance thermometer according to DIN EN 60751 (class B) is designed as 1 x Pt100 in three-wire circuit. The connecting cable has a shielded contact and the transition is both strain-relieved and equipped with an anti-kink spring. The permissible ambient temperature of the cable is -50 to +350 °C. The connection ends are provided with wire end sleeves.
