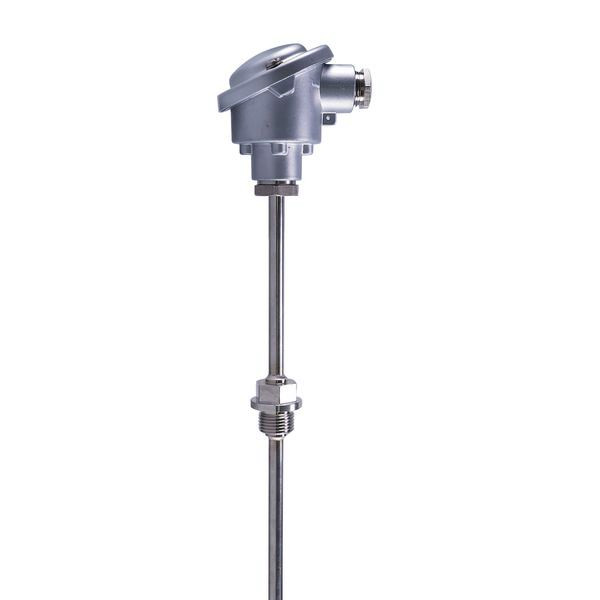

Abbildung ähnlich
JUMO

04563107
JUMO 55565 Widerstandsthermometer, 2xPt100 zl

55565 4053877003410 00055565
auf Anfrage
je 1 ST
keine Verfügbarkeitsinformationen

Verpackungseinheiten

1 ST Menge übernehmen

Funktionen

Verkaufsdaten

Mindestbestellmenge 1 ST
Bestellschritt 1 ST

Beschreibung

The screw-in resistance thermometer enables temperature measurement in gaseous and liquid media due to the temperature dependence of the electrical resistance of its built-in platinum sensor. The proven installation form guarantees a reliable seal in case of under- and overpressure. The continuous protection tube and the process connection are made of stainless steel 1.4571 and protect the measuring insert against chemical influences and mechanical damage. The resistance thermometer is therefore ideally suited for applications such as in heating, furnace and apparatus engineering or in process technology. With exchangeable measuring insert, the double resistance thermometer is designed as 2 x Pt100 in 2-wire circuit according to DIN EN 60751 (Class B) and is designed for temperatures from -50 to +400 °C. The connection head made of die-cast aluminium in form B (IP65) is mounted through a neck tube thermally decoupled from the process connection. The connection head is equipped with an M20 x 1.5 cable gland and can withstand temperatures up to 100 °C. The protection tube has a dimension of 9.0 x 160 mm. A screw connection with G 1/2 inch thread serves as process connection.

Merkmale

Verpackungseinheit 1
Gewicht 0,46
Gewichtseinheit KG
Gewichtbezugsmenge 1
Ausführung Klemme
Messbereich -50 - 400 °C
Werkstoff rostfreier Stahl
Länge der Sonde 160 mm
Kurzbeschreibung Wider position thermometer, 2xPt100 zl, 9x160mm, G 1/2, -50..+400°C
eClass 11.0 - Klasse 27200290
UNSPSC 14.0801 - Klasse 41112219
