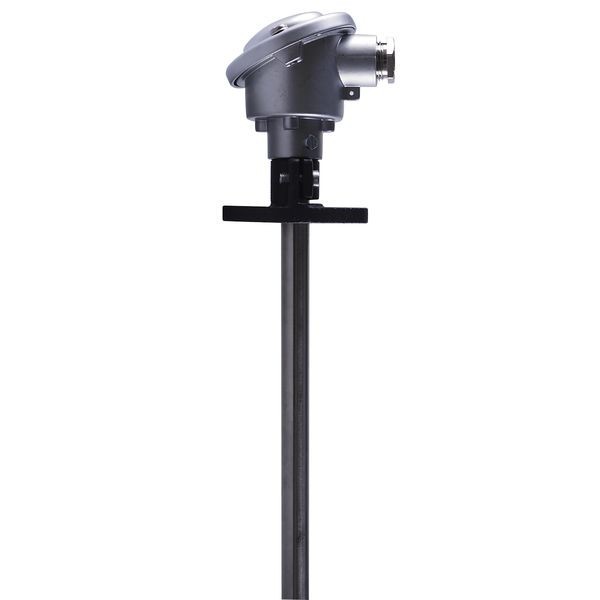

JUMO 55514 Widerstandsthermometer, Form B, 1x

The pluggable resistance thermometer allows, due to the temperature dependence of the electrical resistance of its built-in platinum sensor and the proven design, a temperature measurement in gaseous and liquid media. With a continuous protection tube made of stainless steel, material 1.4571 and a stop flange made of grey cast iron, the resistance thermometer is ideally suited for applications in air conditioning and refrigeration technology, in heating, furnace and apparatus engineering as well as in process technology. The resistance thermometer 1x Pt100 acc. to DIN EN 60751 (tolerance class B) is designed in two-wire technology and for temperatures from -50 to +600 °C. The measuring insert is exchangeable. The connection head form B is made of die-cast aluminium and withstands ambient temperatures from -40 to +100 °C. The connection head is equipped with a cable gland M20 x 1.5. The protective tube has a dimension of 15 x 500 mm.
