04563553

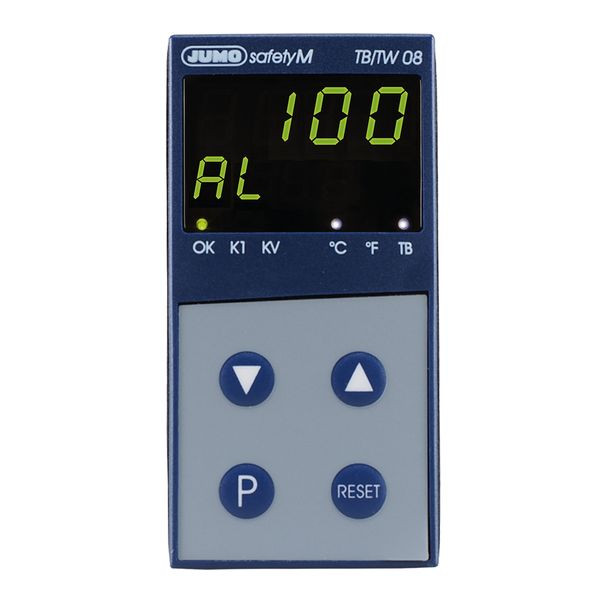

JUMO 547738 Temperaturbegrenzer, -wächter, AC

The freely programmable temperature limiter according to DIN EN 14597 in format 48 x 96 mm is made for a voltage supply range of AC 110 to 240 V, 48 to 63 Hz, 5 VA. The measurement input is freely configurable for RTD temperature probe, thermocouples, current and voltage signal. The available analog output provides a standart signal. Temperature limiter, -monitor watch thermal processes in systems on a set limit value. If this exceed, the integrated relay (with fuse cut-out) switch the system into a safe operating status. The green LED OK expire and the LED K1 lights red. When the system gets back to the valid range, on the temperature limiter operation the butten Reset needs to be pressed. Configurated as an temperature monitor it reset on it's own. The relay KV with a adjustable temperature dispense a pre-alarm signal before the set limit value is archieved. The switching status is also shown on the LED KV. The device is designed for the panel mounting and is wired with pluggable screw terminal with a conductor cross section of max. 2,5 mm².
