04563514

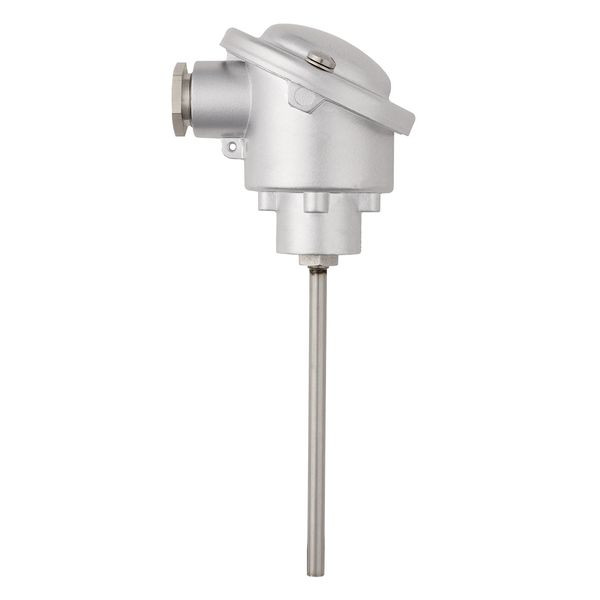

JUMO 542851 Widerstandsthermometer, Form B, 1

The pluggable resistance thermometer allows, due to the temperature dependence of the electrical resistance of its built-in platinum sensor and the proven design, a temperature measurement in gaseous and liquid media. With a continuous protection tube made of stainless steel, material 1.4571 and a connection head form B, the resistance thermometer is ideally suited for standard applications in air conditioning and refrigeration technology and in heating and apparatus engineering. The 1x Pt100 resistance thermometer in accordance with DIN EN 60751 (tolerance class B) is designed in two-wire technology and for temperatures from -50 to +400 °C. The connection head is made of die-cast aluminum and withstands ambient temperatures from -40 to +100 °C. The connection head is equipped with a cable gland M20 x 1.5. The protective tube has a dimension of 6 x 250 mm.
