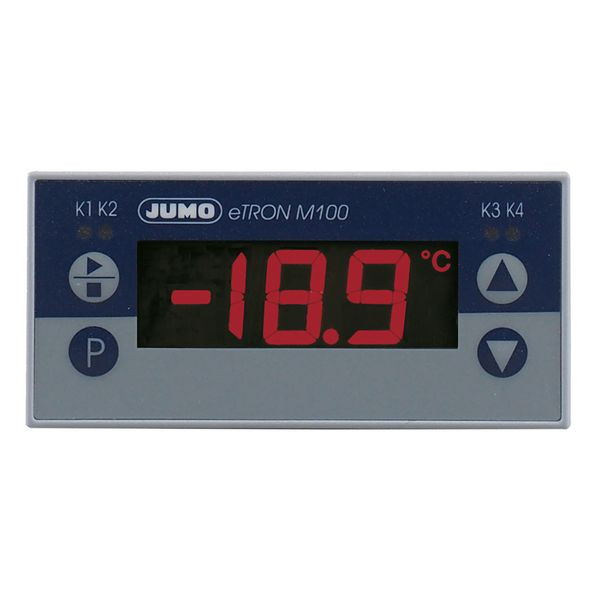

JUMO 536164 Elektronischer 2-Kanal Microstat

This electronic 2-channel microstat for universal use and for connection to RTD temperature probes Pt100, Pt1000, KTY1X-6, or KTY2X-6. The two measuring inputs measure temperatures that are available as the actual value and that can be assigned to the relays as the user sees fit.4 relays are available. The measured values and parameters are displayed on a three-digit display with lit background. The switching statuses of relays K1 to K4 are indicated by yellow LEDs. The electrical connection is made via screw terminals. The device is operated and parameterized via 4 keys. The voltage supply range is from AC/DC 12 V to 24 V ±15 %, 48 to 63 Hz.
