04563466

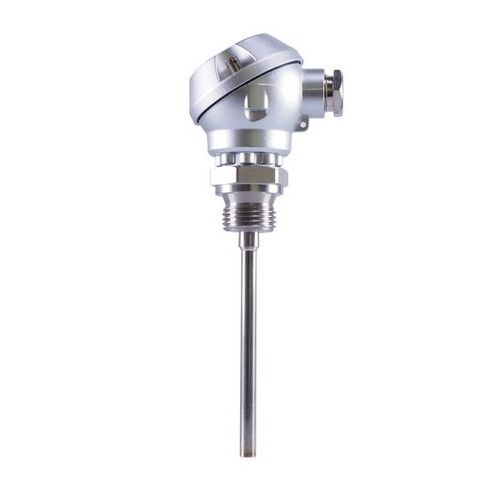

JUMO 520186 Thermoelement mit Anschlusskopf,

The screw-in thermocouple is suitable for temperature measurement in liquid and gaseous media by means of the Seebeck effect. The proven installation form guarantees a reliable seal in case of under- as well as overpressure. The continuous protection tube and the process connection are made of stainless steel and protect the measuring insert against chemical influences and mechanical damage. The thermocouple can therefore be used excellently for example in heating, furnace and apparatus engineering as well as in process technology. The single thermocouple 1x Fe-CuNi L according to DIN 43710 is designed for temperatures from -200 to +600 °C. The connection head in form J is made of die-cast aluminium. It has an M16 x 1.5 cable gland and can withstand ambient temperatures from -40 to +100 °C. The protection tube has a diameter of 6.0 mm and the installation length is 200 mm. A screw connection with G 1/2 inch thread serves as process connection. The thermocouple has the protection class IP65.
