04563432

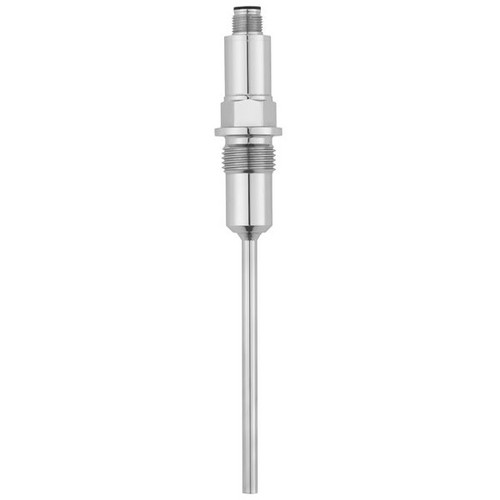

JUMO 491506 Widerstandsthermometer, M12, 6x10

The screw-in resistance thermometer enables temperature measurements in gaseous and liquid media due to the temperature dependence of the electrical resistance of its built-in platinum sensor. The extremely compact design also includes a programmable two-wire transmitter. The electrical connection is made via a machine plug M12 x 1 mm. Housing and protection tube are made of stainless steel. The protection tube is made of stainless steel 316 L (Mat-No. 1.4401/1.4435) and has a dimension of 6 x 100 mm. The device is ideally suited for industrial applications and complies with the European standards for electromagnetic compatibility (EMC). The screw-in resistance thermometer can be used to measure temperatures in the range from -50 to +150 °C (-58 to +302 °F). Measuring range, fine calibration or measuring circuit monitoring can also be configured using a setup program. A Pt1000 sensor (tolerance class A) in four-wire circuitry is used as the measuring insert. The converted output signal 4 to 20 mA or reversed 20 to 4 mA is available linearized (temperature linear). A G 1/2 screw connection is used as process connection. The transmitter must be protected against temperatures above 85 °C! The product is not intended for export to the USA!
