Beschreibung

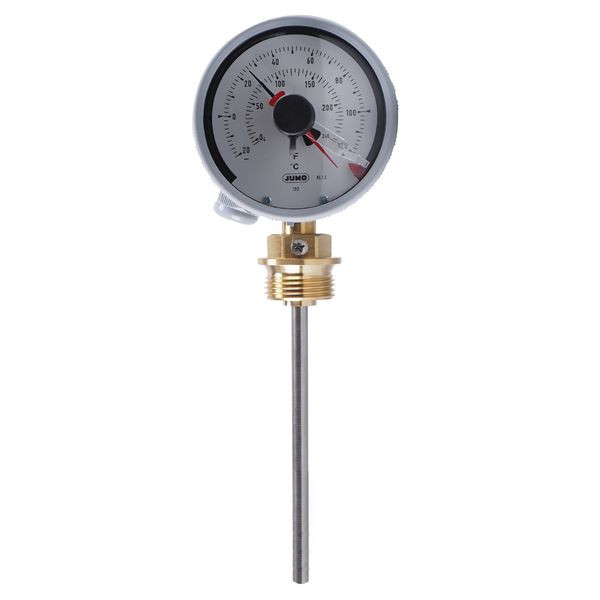

The transformer thermometer with a case made of high-quality, UV-resistant polyamide (protection class IP 54) has a case diameter of 80 mm. The measuring system used operates according to the fluid expansion principle. The temperature is indicated by a dial on a white scale with black lettering. The device has an accuracy class of 1.5 similar to DIN EN 13190. The temperature can be read in °C or °F through a plexiglas pane (PMMA). Two installed microswitches can be set independently of each other to the desired switch-off temperature by means of a screwdriver in the front pane. The device is characterized by a high switching point accuracy of +/-0.7 K related to the set switch-off point with rising temperature. The maximum permissible switching capacity of the installed changeover contacts is 5 A / 230 V AC each. The electrical connection is made via screw terminals and is protected by a cover cap. The switching difference (hysteresis) is approx. 1.5 % of the display range. The microswitch automatically switches back to the original state after the temperature has fallen below the switch-off temperature by this value. The contact adjustment is protected against improper adjustment by a cover. Furthermore, the thermometer is equipped with a drag indicator so that the maximum process temperature reached is recorded.The device has a protection tube with a diameter of 8 mm made of stainless steel (material no. 1.4571) and a screw connection made of brass. It is fixed by a thread G 1 form A according to DIN 3852/2, the rated position is max. 90°. The thermometer is used especially in the transformer industry, but can also be used universally for local temperature measurement of any kind. A decisive advantage is that no additional auxiliary energy is required for temperature measurement. The device is RoHS compliant and cadmium-free.
Merkmale
| Schutzart (IP) | IP54 |
| Verpackungseinheit | 1 |
| Gewicht | 0,62 |
| Gewichtseinheit | KG |
| Gewichtbezugsmenge | 1 |
| Ausführung des Sensors | Stabfühler |
| Ausführung des elektrischen Anschlusses | Schraubanschluss |
| Einstellbare Ausschalttemperatur | -20 - 120 °C |
| Einstellbare Einschalttemperatur | -20 - 120 °C |
| Geeignet als Wächter | ja |
| Geräteausführung | Aufbaugerät |
| Mediumtemperatur | 138 °C |
| Schaltdifferenz der Temperatur | 2.1 °C |
| Anzahl der Kontakte als Wechsler | 2 |
| Schutzart (NEMA) | sonstige |
| Kurzbeschreibung | Transformer thermometer, -20..120°C, 150 mm, 2 switching contact |
| eClass 11.0 - Klasse | 27371245 |
| UNSPSC 14.0801 - Klasse | 39122229 |
