04563364
JUMO 445084 Widerstandsthermometer, 2,5m FEP-

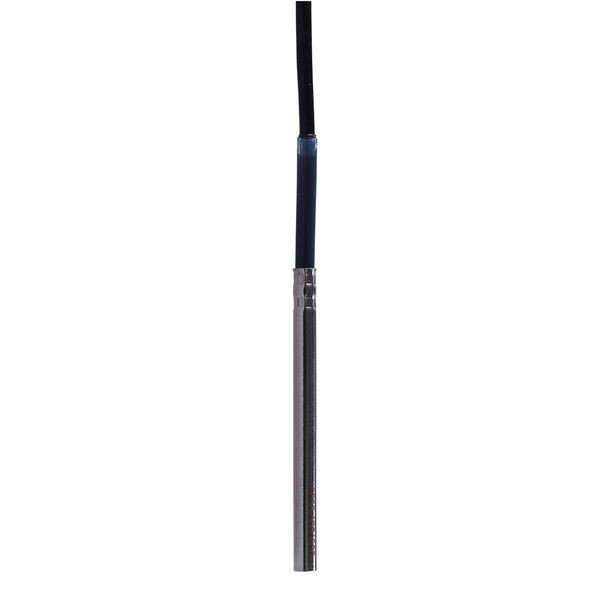

The pluggable resistance thermometer with connecting cable enables, due to the temperature dependence of the electrical resistance of its built-in platinum sensor, a temperature measurement in gaseous and liquid media. The protection tube consists of material 1.4571 and has a dimension of 4 x 50 mm. The connection cable is designed for operation in humid rooms. The resistance thermometer is therefore preferably used for temperature measurements in sterilizers. The special design also allows the use in steam containing pressurized atmosphere up to 5.0 bar. Further areas of application are, among others, in apparatus engineering and laboratory technology. The resistance thermometer according to DIN EN 60751 (Class A) is designed as 1 x Pt100 in four-wire circuit and is intended for temperatures from -70 to +200 °C. The 2.5 m long connecting cable is made of FEP and is mounted strain-relieved at the transition. The permissible ambient temperature of the connecting cable is -70 to +200 °C. The open connection end is equipped with wire end sleeves according to DIN 46228 Part 4.
