JUMO 376703 Widerstandsthermometer, 1xPt100 z

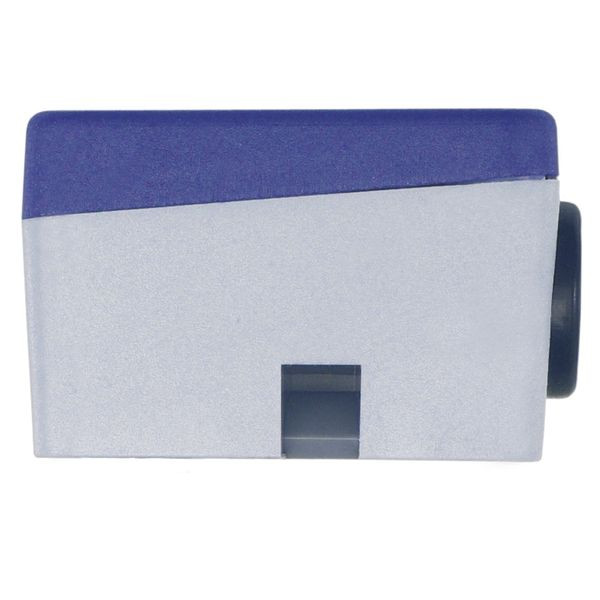

The tube contact resistance thermometer enables good temperature measurements on surfaces due to the temperature dependence of the electrical resistance of its built-in platinum sensor and the special housing design. A small angle is omitted in the middle of the bottom of the case, which allows it to be mounted on round surfaces. A cable gland M16 x 1.5 mm allows the electrical connection to be fed in and increases the protection class to IP65. The resistance thermometer according to DIN EN 60751 (Class B) is designed as 1 x Pt100 in two-wire circuit and is designed for temperatures from -50 to +120 °C. The dimensions of the plastic housing are 30 x 32 x 50 mm. Due to the simple assembly with tension bands or hose ties, mechanical processing of the measuring point is not necessary. An associated mounting kit is included in the scope of delivery.
