04563236

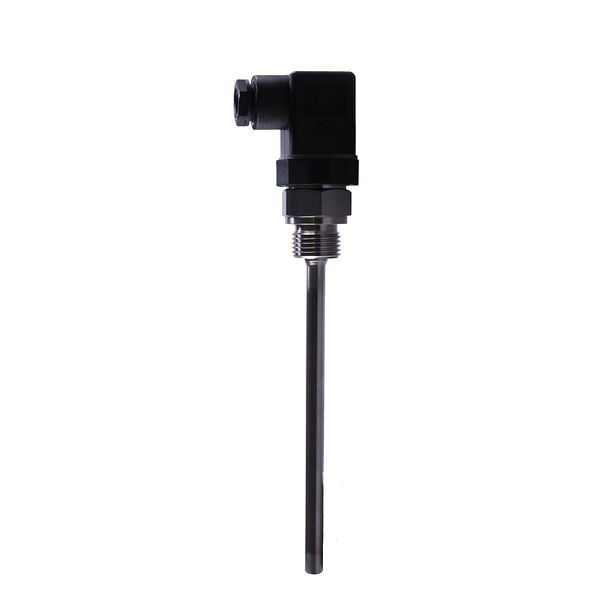

JUMO 368416 Widerstandsthermometer, Pg9, 1xPt

The screw-in resistance thermometer with junction box Pg9 according to DIN EN 175301-803 (DIN 43650) enables, due to the temperature dependence of the electrical resistance of its built-in platinum sensor, a temperature measurement in gaseous and also liquid media. Due to the contact-secure interlocked plug connection between protective fitting and connecting cable, the vibration-proof construction and the possible measurements under pressure, this version is preferably used in motors and compressors as well as in plant engineering and shipbuilding. The resistance thermometer with measuring insert 1x Pt100 in two-wire circuit according to DIN EN 60751 (tolerance class B) is designed for temperatures from -50 to +200 °C. The protection fitting is made of stainless steel 1.4571 and has a process connection with thread G 1/2 inch. The protection tube has a dimension of 8 x 150 mm. The plug connection between the protection fitting and the connection cable has the protection class IP65 when plugged in.
