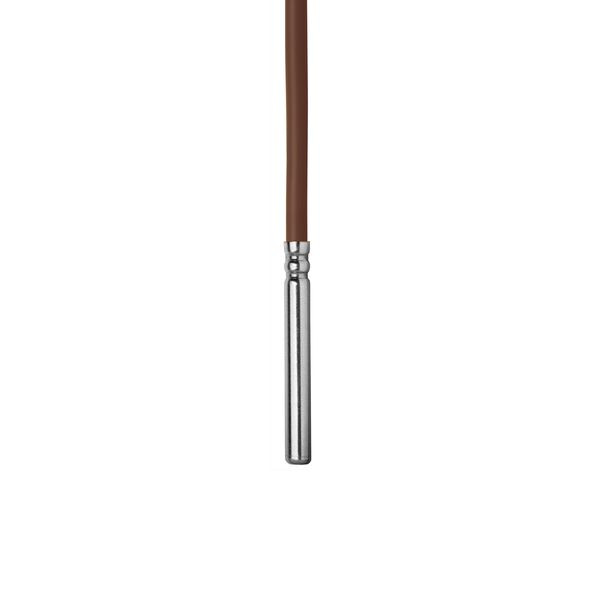

JUMO 00549701 Widerstandsthermometer

The pluggable resistance thermometer with connecting cable allows, due to the temperature dependence of the electrical resistance of its built-in platinum sensor, a temperature measurement in gaseous as well as liquid media. The multi-part protection tube is welded, consists of the material 1.4571 and has a dimension of 6.0 x 150 mm. The resistance thermometer is therefore ideally suited for applications in air conditioning and refrigeration technology, in heating, furnace and apparatus engineering, as well as in laboratory technology. The resistance thermometer according to DIN EN 60751 (Class B) is designed as 1 x Pt100 in three-wire circuit and is designed for temperatures from -50 to +400 °C. The 2.5 m long connection cable made of metal braiding has shielded contacts, is mounted at the transition with strain relief and is equipped with an anti-kink spring. The permissible ambient temperature of the connection cable is -50 to +400 °C. The open connection end is equipped with wire end ferrules according to DIN 46228 part 4.
