03590727
JUMO 00492539 Widerstandsthermometer

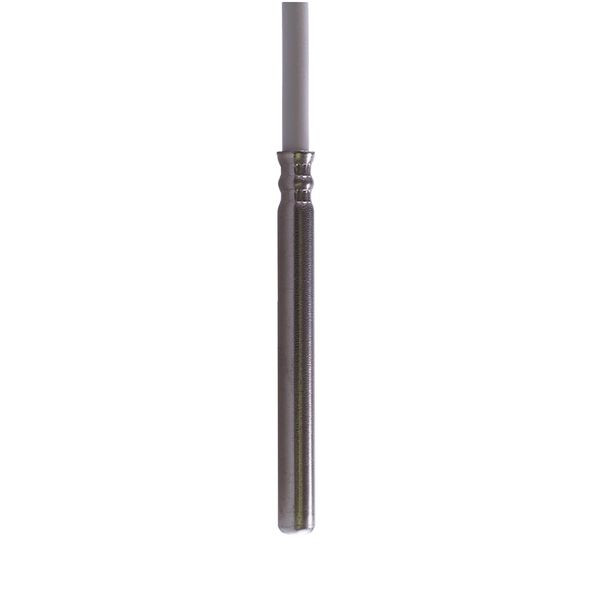

The pluggable resistance thermometer with connecting cable enables, due to the temperature dependence of the electrical resistance of its built-in platinum sensor, a temperature measurement in gaseous and liquid media. The one-piece protection tube is welded, consists of the material 1.4571 and has a dimension of 6 x 60 mm. The resistance thermometer is therefore ideally suited for applications in air conditioning and refrigeration technology, in heating, furnace and apparatus engineering, as well as in laboratory technology. The resistance thermometer according to DIN EN 60751 (Class B) is designed as 1 x Pt100 in two-wire circuit and is designed for temperatures from -5 to +105 °C. The 2.5 m long connection cable made of PUR is mounted strain-relieved at the transition and is waterproof with protection class IP65. The permissible ambient temperature of the connecting cable is -5 to +105 °C. The open connection end is equipped with wire end sleeves according to DIN 46228 Part 4.
